PV DC Isolator Switches · RTS-PVIS63-1000

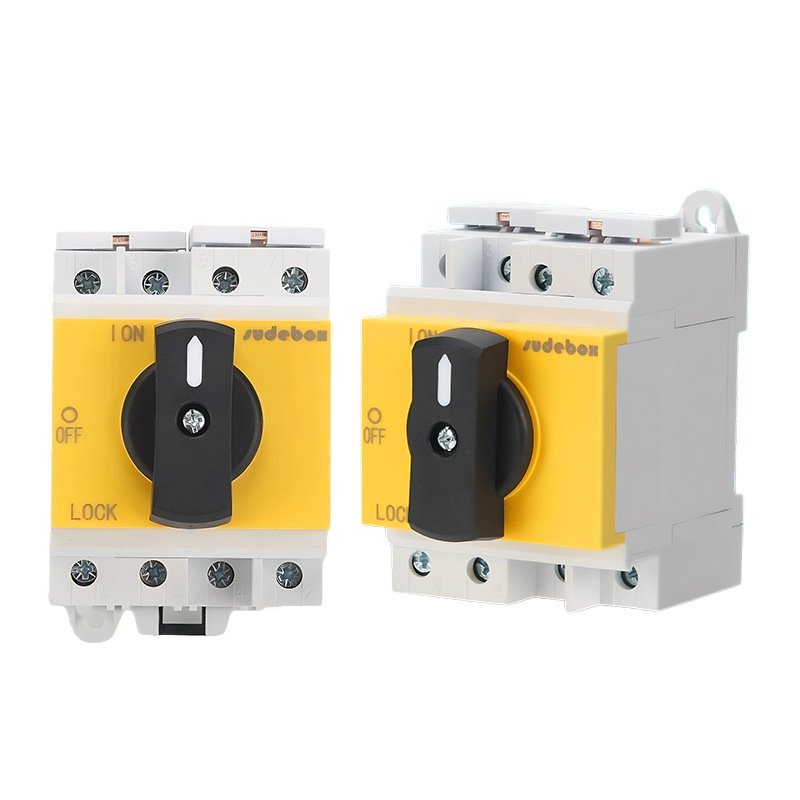

2P/4P DC PV Isolator Switch, 32-63A, 600-1000V
Compact photovoltaic DC isolator switch family in 2P 32A DC600V and 4P 32A or 63A DC1000V configurations, with yellow and white options.
DC600V / DC1000VRated Voltage
32A / 63AListed Thermal Current
2P / 4PPole Configuration
IP65, supplier listed; installed-condition scope pending verificationProtection Rating
Product Overview
Compact photovoltaic DC isolator switch family in 2P 32A DC600V and 4P 32A or 63A DC1000V configurations, with yellow and white options.
Key Features
- Model Family: RTS-PVIS63-1000
- Product Type: Panel-Mount Photovoltaic DC Isolator Switch
- Rated Voltage: DC600V / DC1000V
- Listed Thermal Current: 32A / 63A
- Pole Configuration: 2P / 4P
Available Models / Configurations
| Ritoks Model | Voltage | Poles | Current | Color |
|---|---|---|---|---|
| RTS-PVIS32-600-2P-Y | DC600V | 2P | 32A | Yellow |
| RTS-PVIS32-600-2P-W | DC600V | 2P | 32A | White |
| RTS-PVIS32-1000-4P-Y | DC1000V | 4P | 32A | Yellow |
| RTS-PVIS32-1000-4P-W | DC1000V | 4P | 32A | White |
| RTS-PVIS63-1000-4P-Y | DC1000V | 4P | 63A | Yellow |
| RTS-PVIS63-1000-4P-W | DC1000V | 4P | 63A | White |
Technical Specifications
| Model Family | RTS-PVIS63-1000 |
| Product Type | Panel-Mount Photovoltaic DC Isolator Switch |
| Rated Voltage | DC600V / DC1000V |
| Listed Thermal Current | 32A / 63A |
| Pole Configuration | 2P / 4P |
| Protection Rating | IP65, supplier listed; installed-condition scope pending verification |
| Housing Material | ABS |
| Contact Material | Copper with nickel plating |
| Wiring Direction | Top entry / bottom exit |
| Mechanical Life | 10,000 operations |
| Special Function | Anti-misoperation switching design |
| Utilization Category / Certification | Pending verified datasheet and test report |
Applications
The supporting image shows a general application environment and does not depict an exact installed configuration.
Photovoltaic inverter DC input isolation
Confirm that the selected model and documented ratings match the application requirements.
Solar combiner boxes and distribution panels
Confirm that the selected model and documented ratings match the application requirements.
PV equipment control cabinets
Confirm that the selected model and documented ratings match the application requirements.
Maintenance isolation for compact DC systems
Confirm that the selected model and documented ratings match the application requirements.
Information to Confirm for Selection
- Specify model family RTS-PVIS63-1000 and the required listed voltage/current configuration.
- Include the pole configuration, color and quantity.
- Provide the circuit information and destination country.
Before submitting an inquiry, consult the DC protection devices selection guide and verify the required isolator configuration against exact model documentation.
FAQ
Can the 2P and 4P versions use the same wiring arrangement?
No. The required pole-series connection depends on the system voltage and switch configuration. Confirm the wiring diagram for the selected SKU before installation.
Does 63A apply at every voltage and wiring configuration?
The supplied list shows 63A only for the 4P DC1000V version. Final rated operational current and utilization category require confirmation from the verified technical document.
