DIN Rail Energy Meters · DTS5158B Three-Phase Four-Wire Series

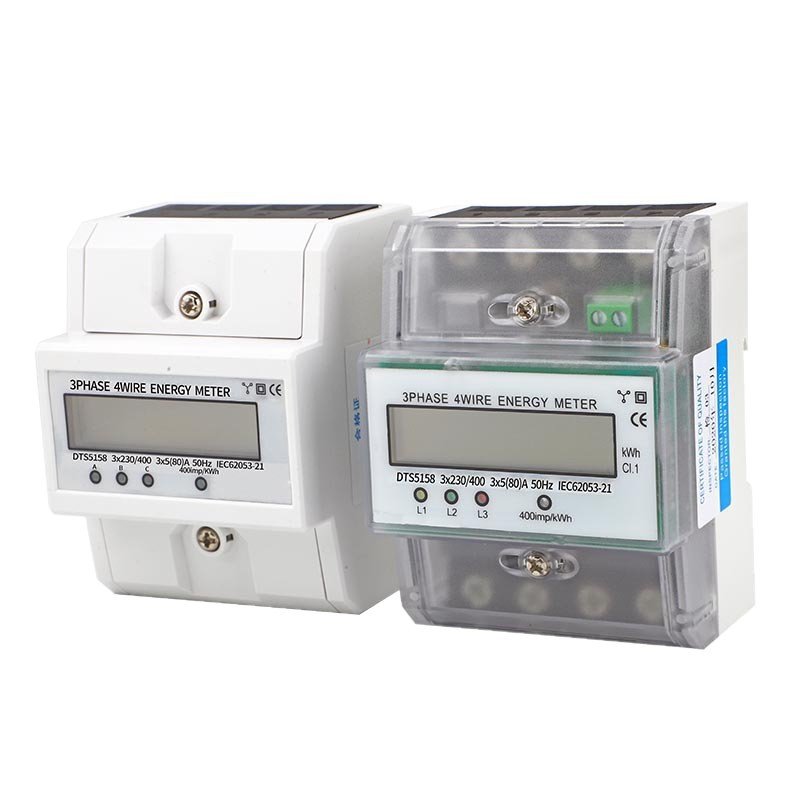

DTS5158B Three-Phase Four-Wire DIN Rail Energy Meter
Three-phase four-wire electronic energy meter family with LCD display, 4P DIN rail installation and four supplier-listed current and housing configurations.
LCDDisplay
4P DIN RailInstallation
White / TransparentHousing Options
4Supplier-Listed Configurations
Product Overview
Three-phase four-wire electronic energy meter family with LCD display, 4P DIN rail installation and four supplier-listed current and housing configurations.
Key Features
- Product Family: DTS5158B
- Product Type: Three-Phase Four-Wire Electronic Energy Meter
- Display: LCD
- Installation: 4P DIN Rail
- Housing Options: White / Transparent
Available Models / Configurations
| Housing | Supplier-Listed Current Designation |
|---|---|
| White Housing | Supplier-listed 5–80A current designation. |
| Transparent Housing | Supplier-listed 5–80A current designation. |
| White Housing | Supplier-listed 30(100)A current designation. |
| Transparent Housing | Supplier-listed 30–100A current designation. |
Technical Specifications
| Parameter | Current Confirmed Information |
|---|---|
| Product Family | DTS5158B |
| Product Type | Three-Phase Four-Wire Electronic Energy Meter |
| Display | LCD |
| Installation | 4P DIN Rail |
| Housing Options | White / Transparent |
| Supplier-Listed Configurations | 4 |
| Current Designations | 5–80A / 30(100)A / 30–100A, according to selected housing configuration |
Confirm the selected housing and supplier-listed current designation before quotation. Exact dimensions are not published on this page.
Applications
The supporting image shows a general application environment and does not depict an exact installed configuration.
three-phase distribution panels
Confirm that the selected model and documented ratings match the application requirements.
control cabinets
Confirm that the selected model and documented ratings match the application requirements.
sub-metering
Confirm that the selected model and documented ratings match the application requirements.
industrial electrical metering
Confirm that the selected model and documented ratings match the application requirements.
Information to Confirm for Selection
- Specify the required DTS5158B housing option and current designation.
- Include the required quantity and application.
- Provide the destination country and request a dimensional drawing if needed.
For three-phase four-wire requirements, current designation, housing options and exact-model verification, see our din rail energy meter selection guide .
FAQ
What DTS5158B configurations are available?
Four supplier-listed combinations are presented: white or transparent housing with the listed 5–80A, 30(100)A or 30–100A current designations.
Is this a single-phase meter?
No. The current product source identifies the DTS5158B as a three-phase four-wire electronic energy meter.
Are exact dimensions published?
No exact dimensions are published on this page. Confirm the selected housing and dimensional drawing before design-in.
What should I provide for a quotation?
Provide the required DTS5158B housing, supplier-listed current designation, quantity and application.
