HS2V H02 Open-Loop Hall Current Sensors 200A-1500A
HS2V H02 open-loop Hall current sensors provide eight nominal-current models from 200A to 1500A with ±15V supply and ±4V analog output for AC, DC and pulsed-current measurement.
200A-1500AEight nominal-current models
±4VAnalog output at nominal current
±15V DCSupply voltage
25kHzBandwidth at -3dB
Product Overview

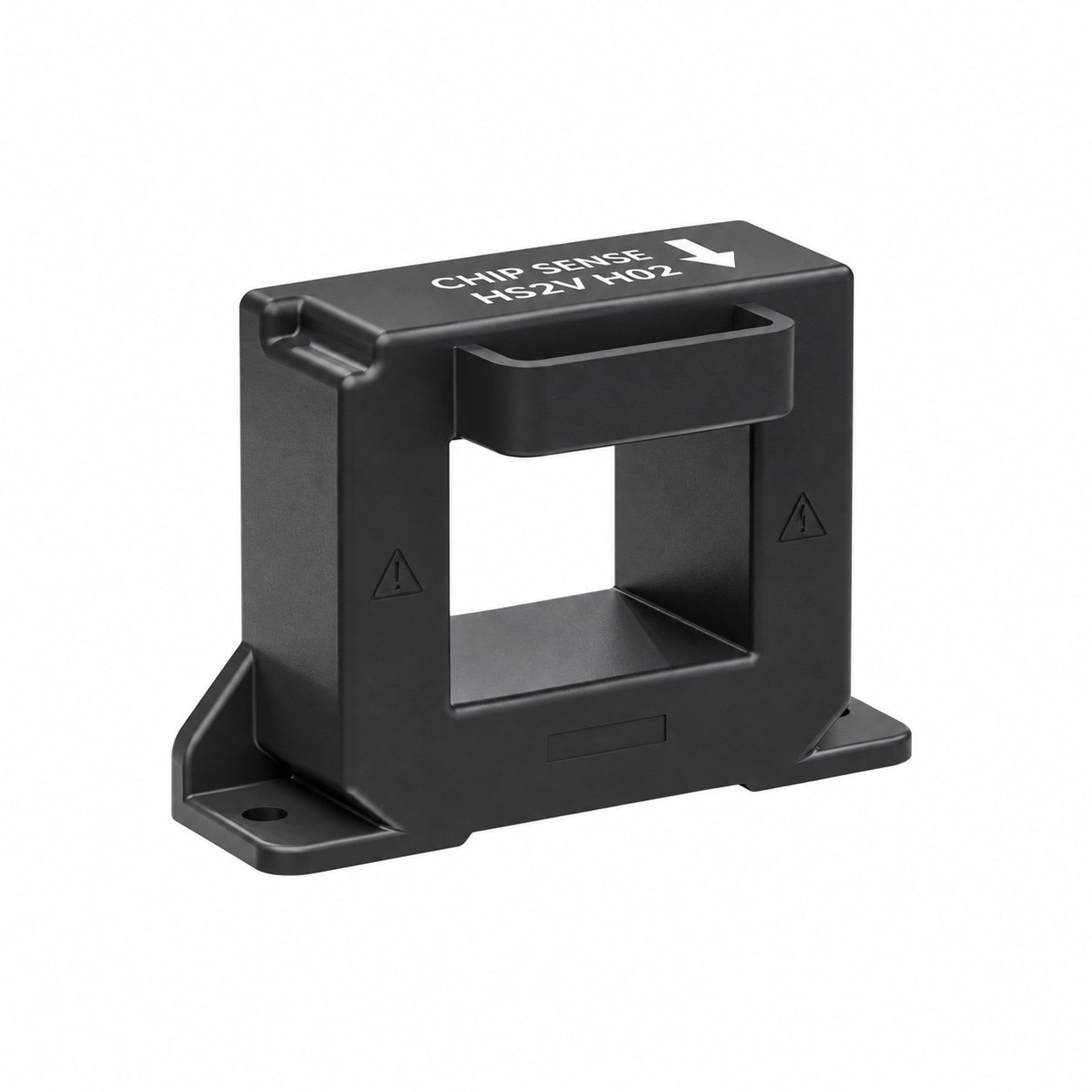

HS2V H02 is an open-loop Hall-effect sensor family for galvanically separated measurement of AC, DC and pulsed current. Eight exact models share the same supply and analog-output architecture while retaining model-specific nominal current and measuring range.
Key Features
- Open-loop Hall-effect measurement
- AC, DC and pulsed-current capability
- Eight documented nominal-current models
- ±4V analog output at nominal primary current
- ±15V DC supply
- ≤5µs response time
- 40.5 x 32.5mm conductor opening
Available Models
Nominal primary current and measuring range are different fields. Select both together with the required supply, output and conductor opening.
| Model | Nominal Primary Current | Measuring Range | Output |
|---|---|---|---|
| HS2V 200 H02 | 200A | ±600A | ±4V |
| HS2V 400 H02 | 400A | ±1200A | ±4V |
| HS2V 500 H02 | 500A | ±1500A | ±4V |
| HS2V 600 H02 | 600A | ±1800A | ±4V |
| HS2V 800 H02 | 800A | ±2400A | ±4V |
| HS2V 1000 H02 | 1000A | ±3000A | ±4V |
| HS2V 1200 H02 | 1200A | ±3000A | ±4V |
| HS2V 1500 H02 | 1500A | ±3000A | ±4V |
Technical Specifications
| Series | HS2V H02 |
|---|---|
| Measurement Principle | Open-loop Hall effect |
| Measured Current | AC, DC and pulsed current |
| Supply Voltage | ±15V DC |
| Analog Output | ±4V at nominal primary current |
| Accuracy | ±1.0% of nominal primary current, excluding offset |
| Linearity | ±0.5% of nominal primary current |
| Response Time | ≤5µs |
| Bandwidth | 25kHz (-3dB) |
| Operating Temperature | -40°C to +105°C |
| Conductor Opening | 40.5 x 32.5mm |
| Connector | XH-4A |
This page does not express a conventional current-transformer ratio. Nominal primary current, measuring range and analog output are kept as separate values.
Applications
The supporting image illustrates a general industrial electrical environment and does not show this product installed.
Industrial Drives and Converters
AC/DC current feedback and monitoring where the verified range and ±4V output fit the control interface.
Power Electronics Equipment
Isolated current measurement in compatible converters, inverters and DC power assemblies.
Energy Storage and DC Systems
Bidirectional current measurement where the selected nominal and measuring ranges match the conductor current.
Information to Confirm for Selection
- Required HS2V H02 model
- Nominal primary current
- Maximum positive and negative measuring range
- ±15V DC supply compatibility
- ±4V analog input compatibility
- Conductor or busbar dimensions
- Quantity and application
FAQ
Is this a conventional current transformer?
No. HS2V H02 is an open-loop Hall current sensor with powered analog output.
Does every model have the same measuring range?
No. Measuring range is model specific and must be selected separately from nominal current.
What output does the family provide?
The verified family output is ±4V at nominal primary current with ±15V DC supply.
Can it measure DC current?
Yes. The manufacturer documents AC, DC and pulsed-current measurement.
Related Products
Request a Quote
Provide the required model, nominal current, maximum measuring range, conductor size, supply/output interface, quantity and application.
