Rack Power Distribution · ATS Rack PDUs

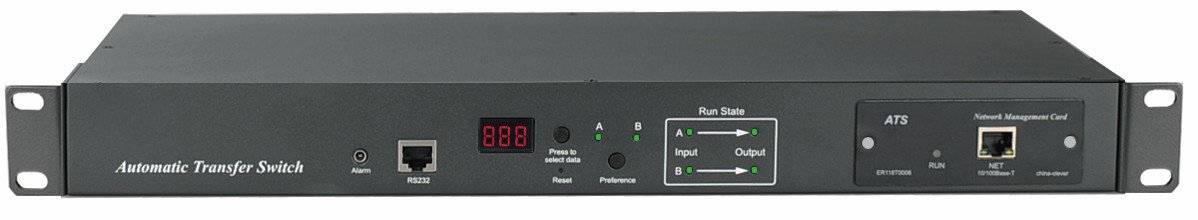

LA-PD Series Dual-Input ATS Rack PDU
LA-PD Series automatic transfer switch rack PDUs provide dual-source power transfer for single-cord rack equipment in verified 1U and 2U IEC configurations.
Dual inputAutomatic source transfer
220VVerified public models
16A / 32AModel-dependent input
1U / 2URack formats
Product Overview
The LA-PD family combines two input sources with automatic transfer and rack power distribution for single-cord equipment. Four conflict-free 220V models are listed below. Transfer time, phase and branch-protection details are not published because the available manufacturer evidence does not resolve them.
Key Features
- Explicit ATS rack-PDU architecture
- Two input connectors per verified model
- LED indication of the active source
- 1U and 2U rack configurations
- Optional hot-swap network management card
Available Models
| Model | Rack | Input | Dual input connectors | Outlets |
|---|---|---|---|---|
| LA-PD-16A0208ATS | 1U | 220V / 16A | 2 x IEC 60320 C20 | 6 x C13 + 2 x C19 |
| LA-PD-16A0201ATS | 1U | 220V / 16A | 2 x IEC 60309 16A | 1 x IEC 60309 16A |
| LA-PD-32A0201ATS | 2U | 220V / 32A | 2 x IEC 60309 32A | 1 x IEC 60309 32A |
| LA-PD-32A0216ATS | 2U | 220V / 32A | 2 x IEC 60309 32A | 12 x C13 + 4 x C19 |
Technical Specifications
| Product type | Automatic transfer switch rack PDU |
|---|---|
| Source architecture | Dual input with automatic source transfer |
| Application architecture | Redundant power for single-cord rack equipment |
| Verified input ratings | 220V / 16A or 220V / 32A, model-dependent |
| Rack format | 1U or 2U, model-dependent |
| Source indication | LED indicators show the active source |
| Management option | Optional hot-swap network management card; not standard on every unit |
| Transfer time | Not published; request exact model documentation |
| Phase / protection / environmental limits | Not published; confirm before selection |
Applications
The supporting image shows a general rack-PDU inspection environment and does not depict a verified LA-PD installation.
Single-cord rack equipment
Provide automatic transfer between two compatible sources for equipment that has one power input.
Server and network cabinets
Select the rack format, input connectors and outlet configuration to match the cabinet power architecture.
Information to Confirm for Selection
Provide the exact LA-PD model, source voltage and current, two input connector types, outlet type/count, rack format, optional management requirement, quantity and application. Request the exact transfer-time, phase, protection, dimensions and environmental documentation before final approval.
FAQ
Is this an ATS rack PDU or an STS product?
The selected LA-PD family is explicitly documented by the manufacturer as an Automatic Transfer Switch for PDU. No STS specifications are copied into this page.
Is network management included on every model?
No. The manufacturer describes a hot-swap network management card as an optional upgrade.
What is the transfer time?
The available manufacturer page and family PDF do not state a transfer time. Request exact model documentation before selecting equipment with transfer-time limits.
