MGPV Solar Fuse Links 1000V-1500V DC

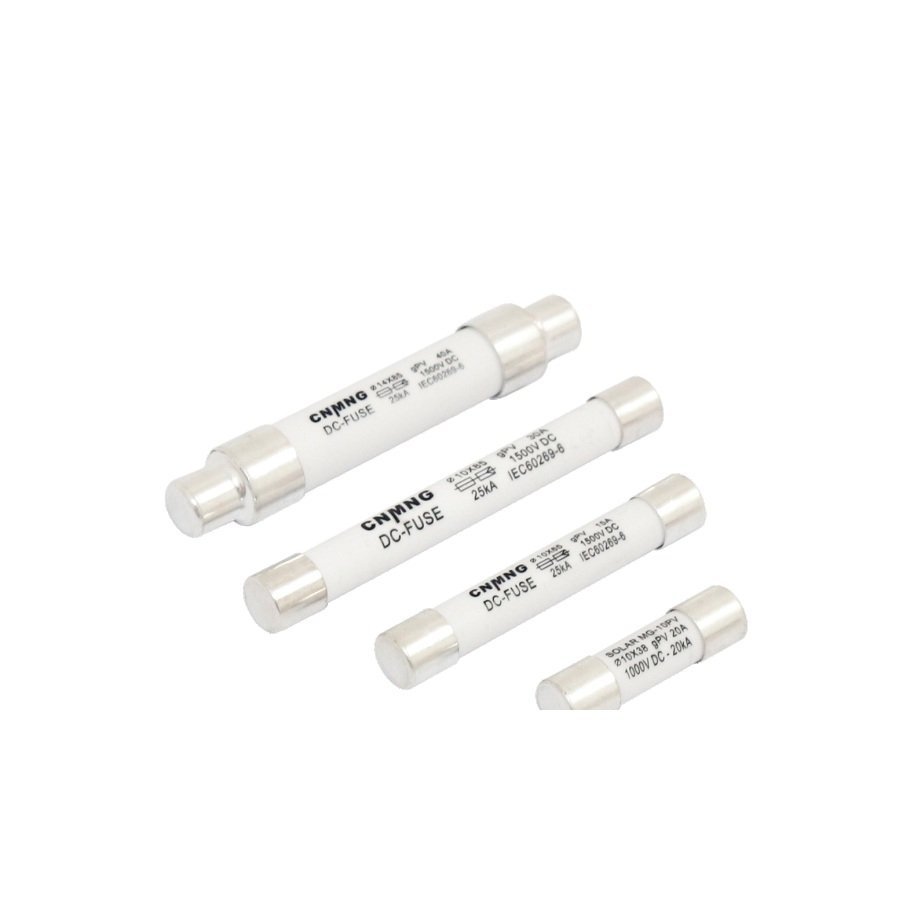

MGPV photovoltaic fuse links cover documented 1000V DC and 1500V DC cylindrical formats from 10 x 38 mm through 22 x 58 mm, with model-specific current ranges.
1000 / 1500V DCModel-specific rated voltage
1-100ADocumented family current span
25kASupplier-listed breaking capacity
6 formatsDocumented cylindrical sizes
Overview | Models | Specifications | Applications | Selection | FAQ | Related Products | RFQ
Product Overview
Product Overview
MGPV photovoltaic fuse links cover documented 1000V DC and 1500V DC cylindrical formats from 10 x 38 mm through 22 x 58 mm, with model-specific current ranges.
Key Features
- Seven documented voltage and physical-format configurations
- Model-specific current-option tables
- 25kA supplier-listed breaking capacity
- Cylindrical sizes from 10 x 38 mm to 22 x 58 mm
Available Models / Configurations
The following configurations are limited to the documented product-family structure.
| Model | Rated Voltage | Current Options | Size | Breaking Capacity |
|---|---|---|---|---|
| MGPV-1038 | 1000V DC | 1-32A (documented discrete options) | 10 x 38 mm | 25kA |
| MGPV-1065 | 1500V DC | 1-25A (documented discrete options) | 10 x 65 mm | 25kA |
| MGPV-1085 | 1500V DC | 2-32A (documented discrete options) | 10 x 85 mm | 25kA |
| MGPV-1485 | 1500V DC | 2-50A (documented discrete options) | 14 x 85 mm | 25kA |
| MGPV-1451-1000 | 1000V DC | 15-50A (documented discrete options) | 14 x 51 mm | 25kA |
| MGPV-1451-1500 | 1500V DC | 15-32A (documented discrete options) | 14 x 51 mm | 25kA |
| MGPV-2258 | 1500V DC | 30, 32, 40, 50, 80, 100A | 22 x 58 mm | 25kA |
Technical Specifications
| Specification | Verified product-family value |
|---|---|
| Product Type | Photovoltaic DC fuse link |
| Rated Dc Voltage | 1000V or 1500V DC, model-specific |
| Rated Current | 1A to 100A across documented model-specific options |
| Breaking Capacity | 25kA |
| Physical Formats | 10 x 38, 10 x 65, 10 x 85, 14 x 51, 14 x 85 and 22 x 58 mm |
Applications

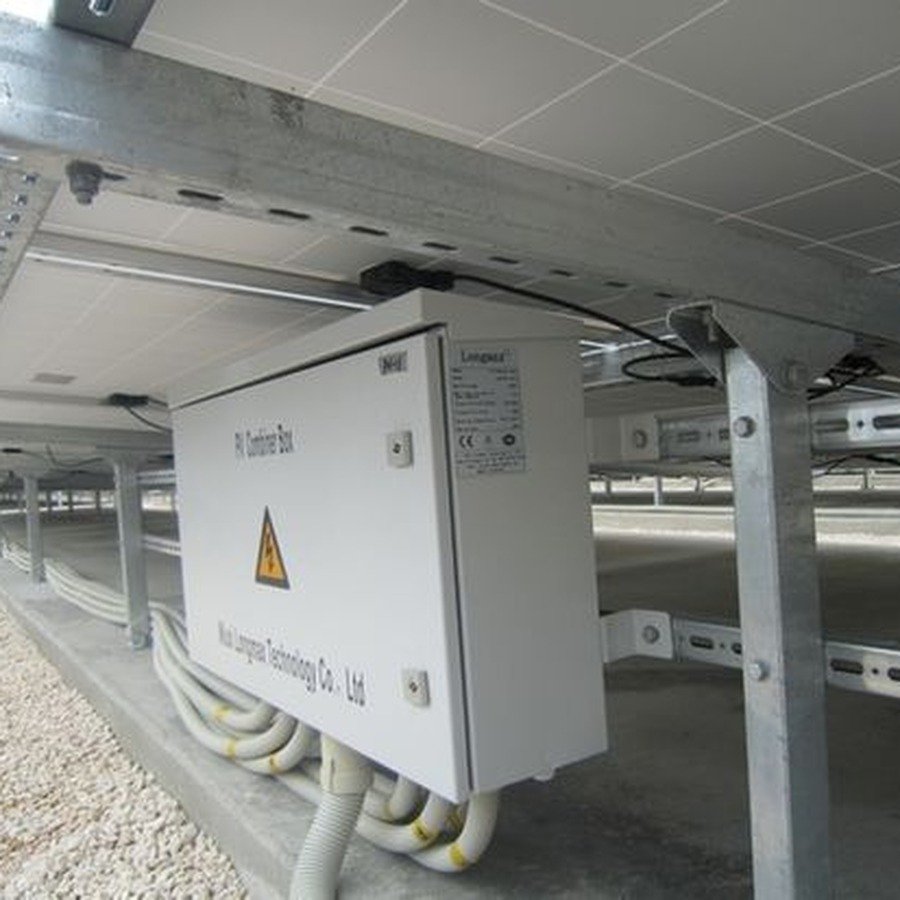

The supporting image shows a general application environment and does not depict an exact installed configuration.
PV string and array circuits
Model selection for photovoltaic DC circuits after voltage, current and coordination requirements are confirmed.
Solar combiner equipment
Cylindrical fuse-link options for compatible PV fuse holders and combiner assemblies.
Information to Confirm for Selection
- Required DC system voltage
- Required fuse current rating
- Physical fuse-link size
- Compatible fuse holder
- Quantity and application
FAQ
How should I select a configuration?
Confirm the model, core rating or adjustment range, physical configuration, system conditions, quantity and application before requesting a quotation.
Are all commercial and optional details shown?
No. Undocumented commercial and optional details are confirmed during quotation.
