RS95 Series aR Semiconductor Protection Fuses
RS95 series high-speed fuses provide aR short-circuit protection for power-semiconductor equipment in 50Hz AC circuits, with five catalog-listed body and rating configurations.
aRSemiconductor protection
500 / 660V ACModel-dependent
40-200ASupplier-listed ranges
5 modelsRS95A through RS95E
Product Overview
The RS95 family groups five catalog-listed bolted-blade fuse bodies. Each row below preserves the supplier-listed voltage and current range; it does not create unverified individual current SKUs or extend series-level claims to a specific model.
Key Features
- Explicit aR utilization category
- Five exact RS95 body variants
- Model-dependent 500V or 500/660V ratings
- Bolted-blade terminal form shown in the catalog
- Short-circuit protection use for semiconductor equipment
Available Models
| Model | Rated voltage | Supplier-listed current range |
|---|---|---|
| RS95A | 500/660V AC | 50-200A |
| RS95B | 500/660V AC | 50-200A |

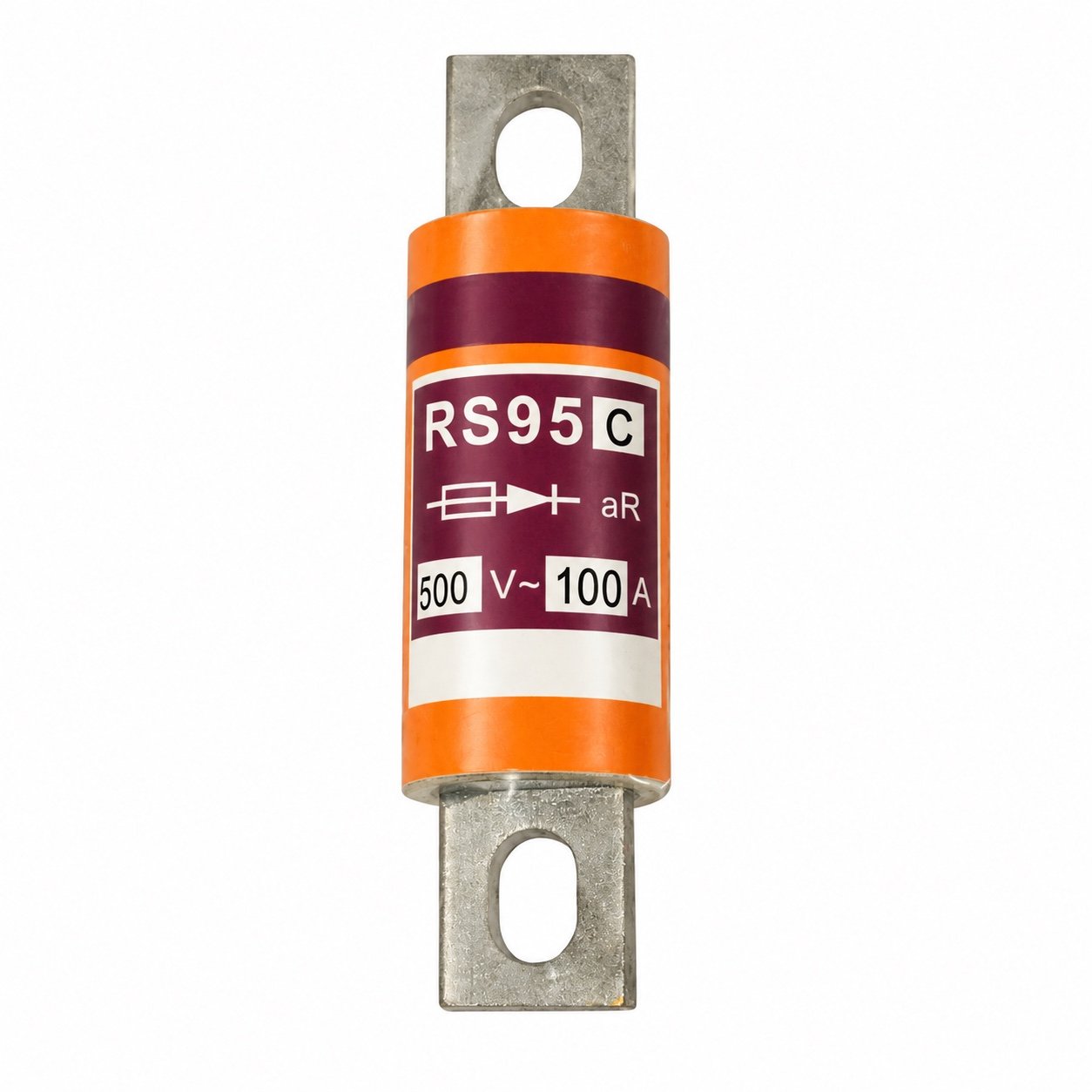

| RS95C | 500/660V AC | 50-100A |
| RS95D | 500V AC | 100-200A |
| RS95E | 500/660V AC | 40-200A |
Technical Specifications
| Parameter | Verified value |
|---|---|
| Product type | aR semiconductor protection fuse |
| Frequency | 50Hz |
| Terminal form | Bolted blade terminals, as illustrated |
| Breaking capacity | Confirm for the exact selected model |
| I²t / power loss | Request exact model data before coordination |
Applications
The supporting image shows a general industrial electrical environment and does not depict a specific RS95 fuse installation.
Power semiconductor protection
Short-circuit protection in AC circuits containing power-semiconductor equipment.
Industrial conversion equipment
Selection support for semiconductor-based power conversion assemblies after exact coordination data is confirmed.
Information to Confirm for Selection
Confirm the exact RS95 body, rated voltage, required current rating, coordination requirements, mounting dimensions and quantity. Request exact model breaking-capacity and I²t documentation before protection coordination.
FAQ
Is the RS95 an ordinary distribution fuse?
The selected catalog family is explicitly listed as aR semiconductor protection. It is not presented here as a general-purpose gG/gL distribution fuse.
Is 100kA confirmed for every RS95 model?
No. The catalog gives a series-level statement without resolving all exact-model conditions, so the page does not publish it as an exact RS95 rating.
Are individual current SKUs confirmed?
The catalog provides current ranges by body model. Confirm the exact current rating available within the selected range before ordering.
Related Products
Request a Quote
Provide the RS95 body model, required voltage and current rating, protected semiconductor equipment, coordination requirements, quantity and application.
