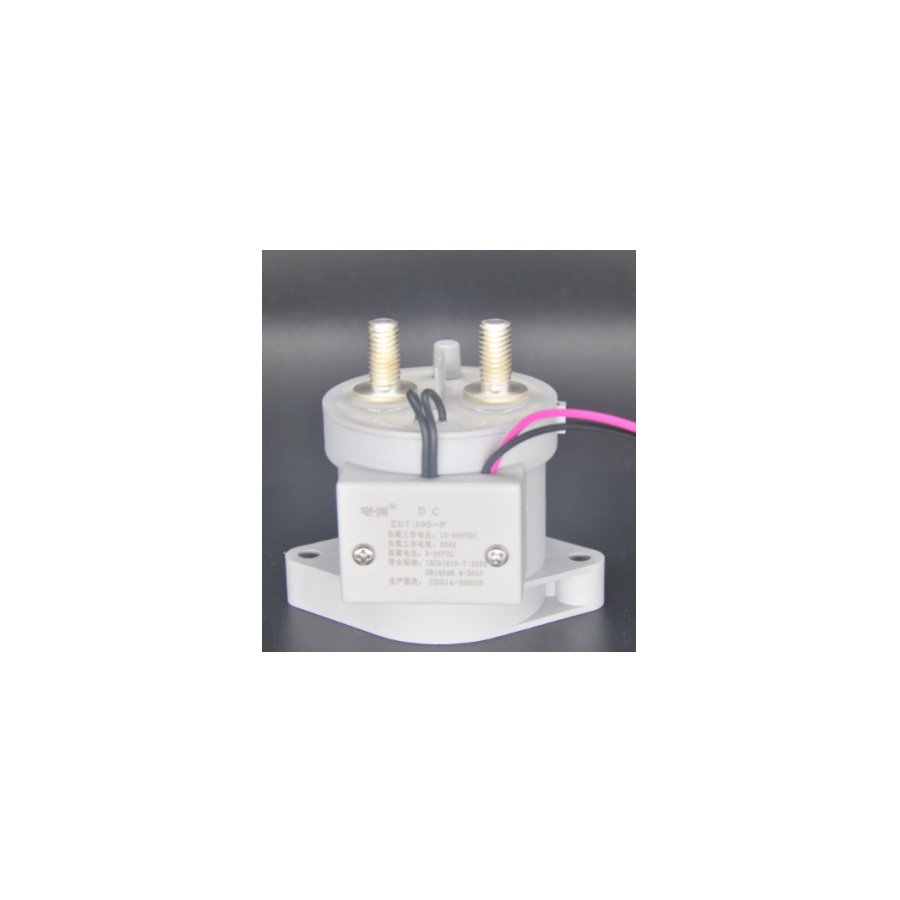

ZUT200-P High-Voltage DC Contactors 200A 1000V
ZUT200-P high-voltage DC contactors provide a 200A normally-open main contact with a 9-36V DC coil and optional normally-open auxiliary contact.
200ARated main-contact current
12-1000V DCRated main-contact voltage
9-36V DCCoil drive voltage
1NOMain-contact form
Overview | Models | Specifications | Applications | Selection | FAQ | Related Products | RFQ
Product Overview
Product Overview
The ZUT200-P family contains two exact configurations distinguished by the auxiliary-contact option. Main-contact voltage, coil voltage and switching current are kept as separate documented fields.
Key Features
- Two exact documented configurations
- Optional normally-open auxiliary contact
- Non-polarized main contacts
- Documented outline and wiring
Available Models / Configurations
The following configurations are limited to the documented product-family structure.
| Model | Auxiliary Contact | Coil |
|---|---|---|
| ZUT200-P | None | 9-36V DC (12/24V common) |
| ZUT200-P-H | 1 normally-open auxiliary contact | 9-36V DC (12/24V common) |
Technical Specifications
| Specification | Verified product-family value |
|---|---|
| Product Type | High-voltage DC contactor |
| Main Contact Form | 1 normally-open contact |
| Rated Main-Contact Current | 200A |
| Rated Main-Contact Voltage | 12-1000V DC |
| Maximum Switching Current | 2000A at 320V DC, one operation or more |
| Coil Drive Voltage | 9-36V DC (12/24V common) |
| Dimensions | 80.3 x 56.9 x 72.5mm |
| Operating Temperature | -40C to +85C |
| Polarity | Main contacts non-polarized; coil polarized |
Applications
The supporting image shows a general industrial application environment and does not depict an exact installed configuration.
Energy storage and battery systems
High-voltage DC switching where the documented current, voltage and coil conditions are suitable.
Charging and industrial DC equipment
Normally-open DC contactor control with optional auxiliary-contact feedback.
Information to Confirm for Selection
- ZUT200-P or ZUT200-P-H
- Main-contact voltage and load current
- Coil drive voltage
- Auxiliary-contact requirement
- Quantity and application
FAQ
How should I select a configuration?
Confirm the exact model, core ratings, system conditions, quantity and application before requesting a quotation.
Are all commercial and optional details shown?
No. Undocumented commercial and optional details are confirmed during quotation.
Related Products
Request a Quote
Provide the required model, main-contact voltage/current, coil voltage, auxiliary-contact requirement, quantity and application.
